Benefits and Features

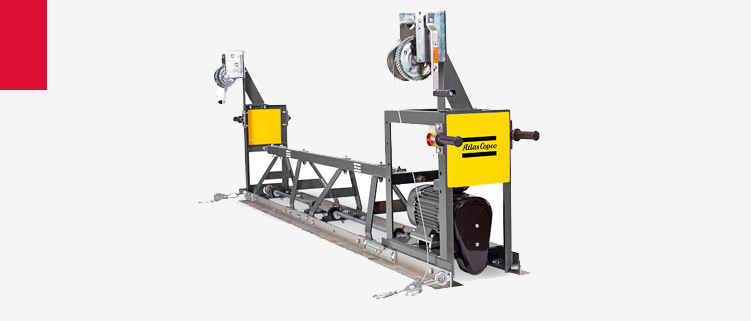

The BT 90 is both powerful and simple. A single operator can easily assemble the self-supporting modules of 1, 2 and 3 meters to the required length without the need for special tools. Once in place the BT90 provides deep vibration effect, and thanks to the heavy steel frame it can remove air voids down to a depth of 200 mm.
Modular Concrete Screed Features
- Electric and petrol screeds manage widths up to 20 m. Pneumatic drives support widths up to 25 m
- A single operator can assemble the screed and its modules without the need for special tools
- Rigid triangular steel frames and square tubes for better rigidity. Well-balanced, well-protected bearings for extended lifetime
Technical Specifications
| Model | Electric | Petrol | |
| Working length | mm (in) | 560 (22) | 560 (22) |
| Width | mm (in) | 535 (21.1) | 620 (24.4) |
| Height | mm (in) | 980 (38.6) | 980 (38.6) |
| Frequency | rpm | 2,865 | 2,900 |
| Power | kW (hp) | 3 (4.1) | 6.3 (8.4) at 3,600 rpm |
| Maximum screed length | m (ft) | 20 (65.6) | 20 (65.6) |
| Powered by | 400V-3-50-Hz | Honda GX270 | |
| Part number | 4812 0509 95 | 4812 0509 96 |
