Benefits and Features
Apollo automatic Asphalt Stationary Drum Mix plants, compliant to the latest M.O.R.T.H. specifications, are designed and engineered to give troublr-free performance with superior fuel efficiency.
Benefits
- Our plant average weight is higher than other Manufacturer, so it is durable.
- We are providing Pressure Jet Oil burner or Progressive Modulating Burner which help to save fuel consumption per hour.
- In four bin feeder each bin have individual gear and variable speed motor. It is possible to control the speed of each bin to get proper proportion of each item.
- We are Using burner in Bitumen tank. It helps to achieve higher thermal rating, reduce emissions and increase turn down.
- We are using SS impeller in Exhauster. The life of Exhauster will increase by 50% due to this.
- We are using Parallel flow drying & Mixing unit which allows more mixing time.
- Burner in Bitumen tank. It helps to achieve higher thermal rating, reduce emissions and increase turn down.
- We are using SS impeller in Exhauster. The life of Exhauster will increase by 50% due to this.
Parts
Pressure Jet Oil Burner
This is a simplest system where the burner has two firing rates. The burner operates first at the lower firing rate and then switches to full firing as needed.
Drying and Mixing Unit
The drum does two operations: Drying and Mixing. Parallel floe drying & mixing unit allows more mixing time to ensure uniform mixture.
Control Cabin & Panel
Control cabin with on board electric power console, distribution, switch board, fully automatic processes are a standard on Apollo DMP plants. It displays the entire process control parameters while panel enables the plant to run in auto & manuel mode.
Pollution Control Unit[optional]
VENTURI type wet dust collectors are highly efficient and are known to maintain required environmental standards. The extreme turbulence leads to superb entrapping of dust laden exhaust gas.
Cold Aggregate Four-bin Feeder
This is the very first step. Different sized aggregates are fed into the different feeder bins. This helps in getting proper proportion of each size as per the need.
Each bin will have individual gear and variable speed drive motor. It is possible to control the speed of each bin to get proper proportion of each item.
Bitumen Tank
Bitumen tank act as storage point for bitumen used in the asphalt plant. These tank storage and heat Bitumen so that it can be used in the drum mixer for mixing with hot aggregate.
Photos

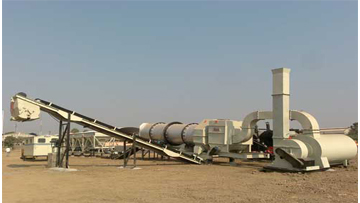

DMP 45

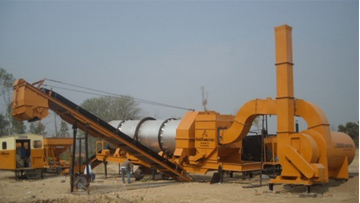

DMP 50

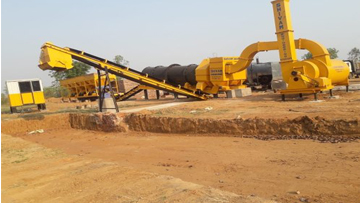

DMP 60
